Product images
5 / 7
£626.00
Terma
Terma Rolo Mirror Designer Radiator
SKU: WGROM180059-KBRAUC01

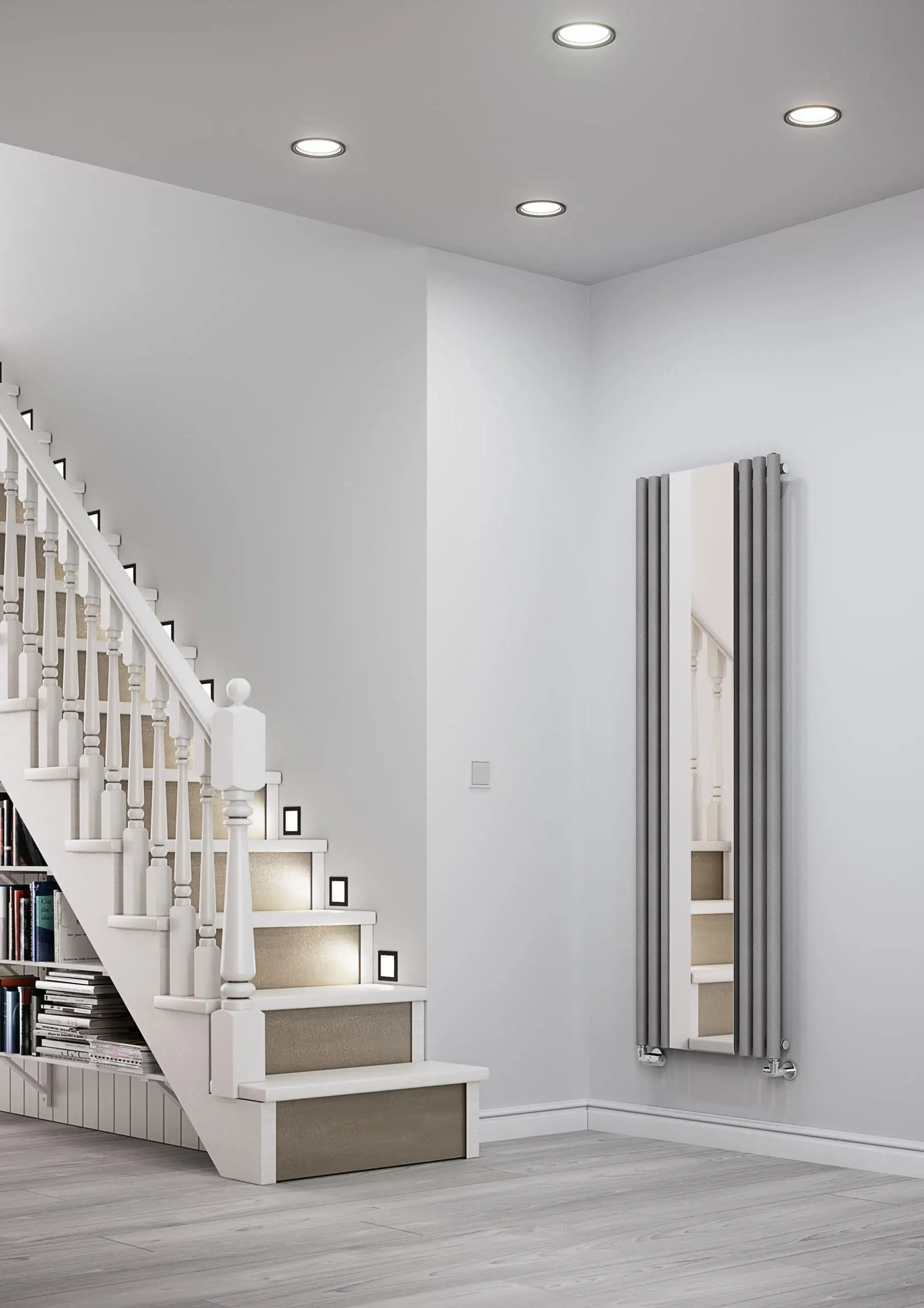

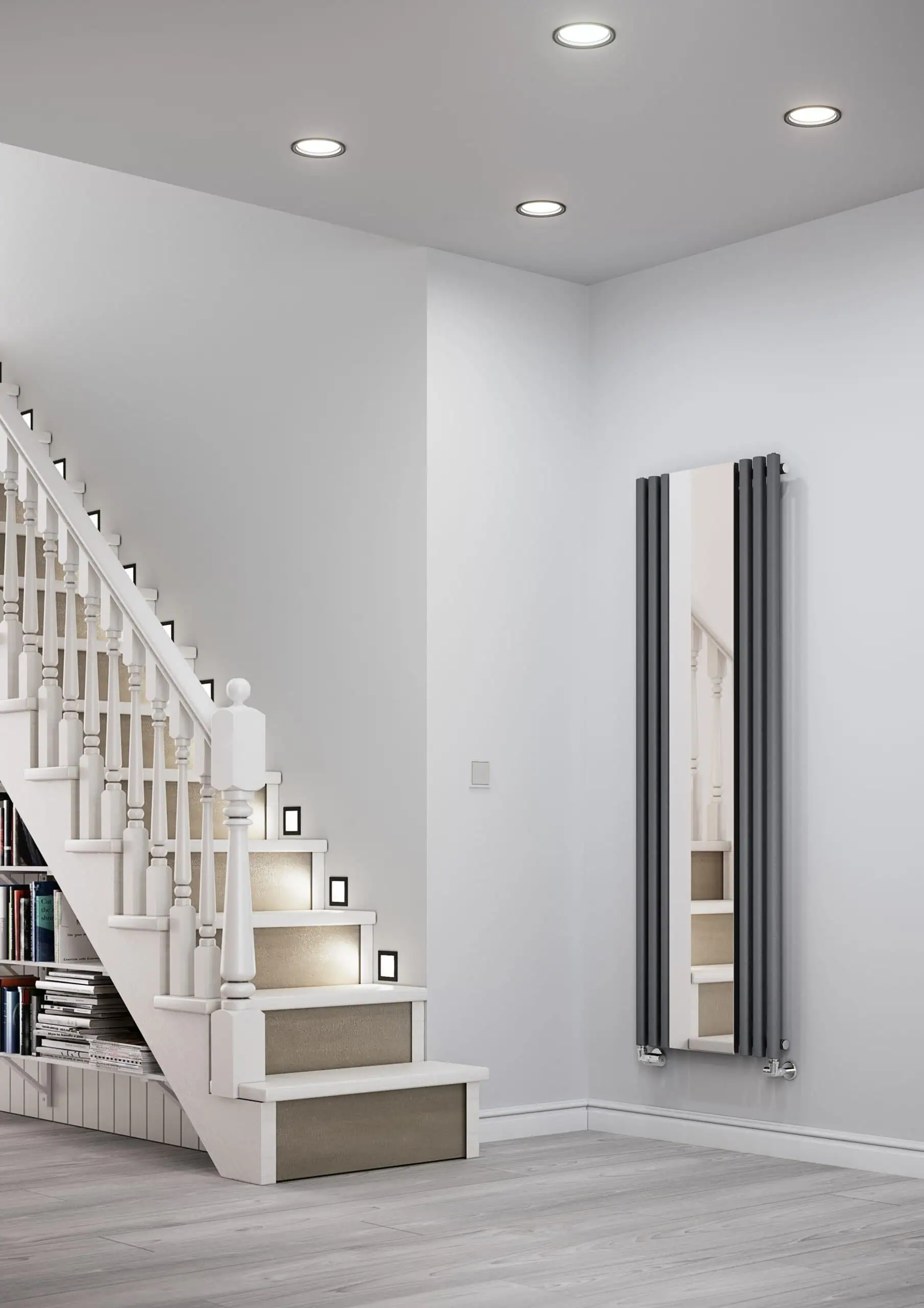

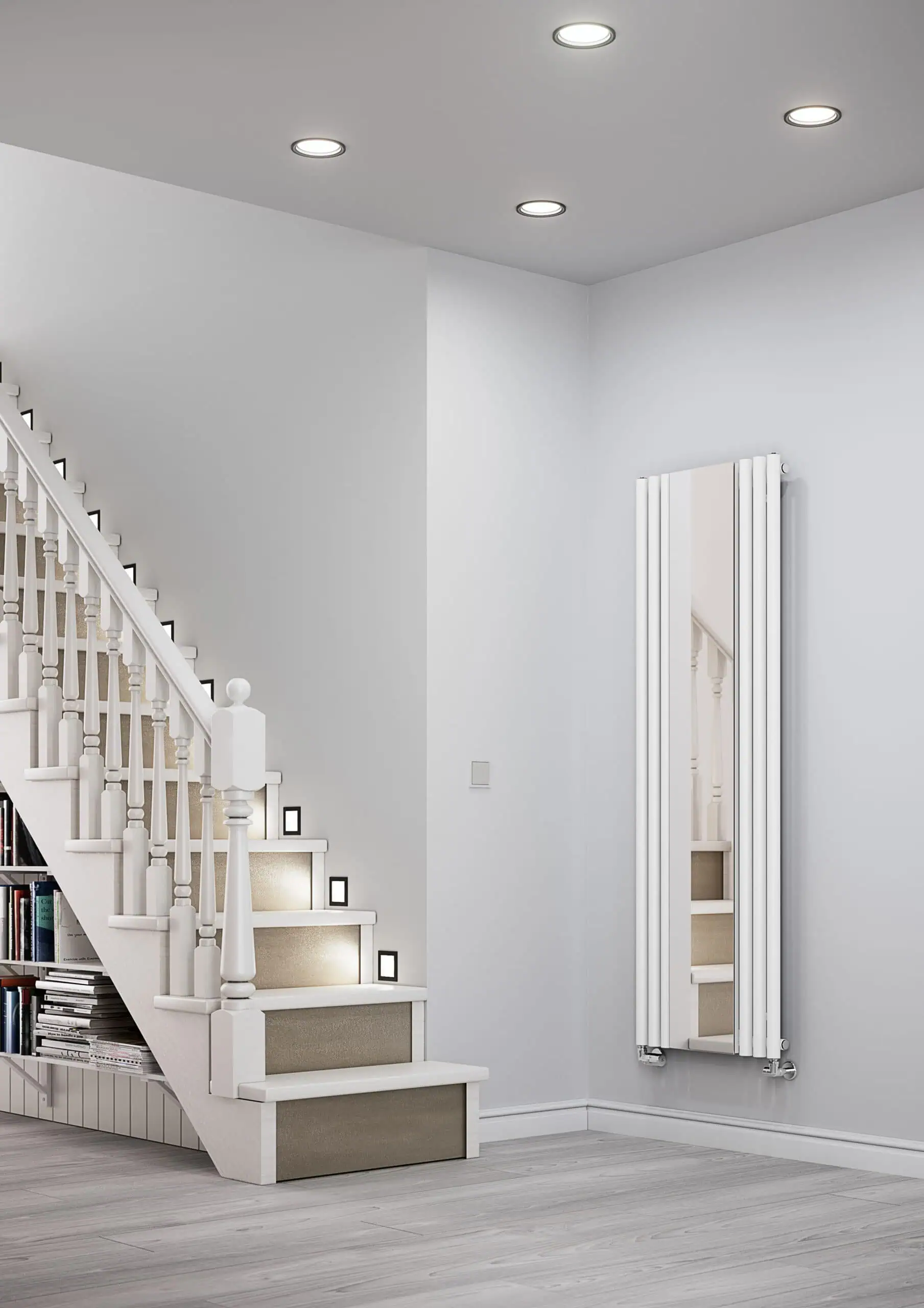

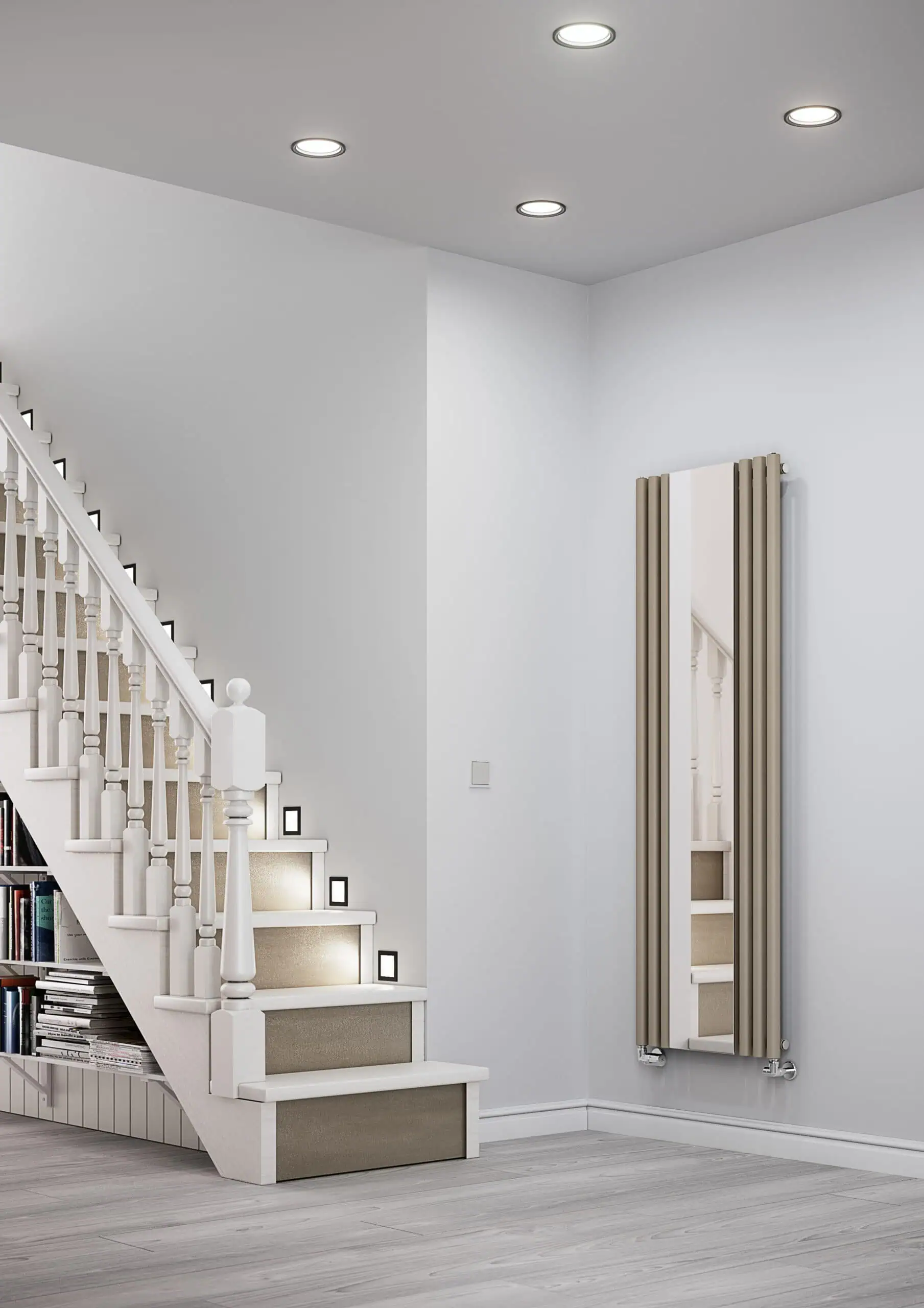

Rolo Mirror combines a high-output radiator with a floor-length mirror. Chunky 40 mm diameter bars frame a 270 mm wide mirror running down the centre, making it a practical statement piece for a bedroom, bathroom, hallway or dressing room.
- Floor-length 270 mm mirror
- Chunky 40 mm diameter bars
- Side or underside valve entry
- Internal diverter system
Dimensions: 1800 × 590 mm (H × W)
Heat output: 2854 BTU/h · 837 W (ΔT50)
In stock
- 8 years manufacturer guarantee
Description
Rolo Mirror combines a high-output radiator with a floor-length mirror. Chunky 40 mm diameter bars frame a 270 mm wide mirror running down the centre, making it a practical statement piece for a bedroom, bathroom, hallway or dressing room.
Images are for illustrative purposes. Available sizes and finishes are shown in the product options.
Design & Features
- Floor-length 270 mm wide mirror set between 40 mm diameter bars.
- Large internal openings where the front bar is recessed into the rear bar, for quick internal water distribution and fast heat-up.
- An internal diverter system helps your plumber balance the water flow for the chosen installation.
- Choice of side or underside valve entry, so the valves can be tucked away where space is tight.
Heating System
Central heating (hydronic) radiator. Output is shown in the table below.
Where to Use It
Bedrooms, bathrooms, hallways and dressing rooms where a full-length mirror and a radiator share the same wall.
Sizes & Finishes
Select the available size and finish from the product options.
Heat Output & Performance
| Size | Output (W, ΔT50) | Output (BTU, ΔT50) |
|---|---|---|
| H 1800 x W 590 mm | 837 / 838 | 2854 / 2858 |
Technical Specifications
- Manufacturer: Terma
- Heating type: Central heating (hydronic)
- Maximum working pressure: 10 bar
- Maximum working temperature: 95°C
- Warranty: 8 years
Installation & Compatibility
- Rolo Mirror is a portrait (vertical) model. It will work if fitted horizontally, but Terma do not advise this.
- Valves are not included.
- Rolo is part of a family of matching radiators (electric and central heating), mirror radiators and towel rails.
What's Included
- Rolo Mirror radiator
- Wall mounting brackets
- Valves are not included
Warranty & Delivery
Warranty: 8 years. Delivery: stock items are quoted with a customer lead time of 8 to 9 weeks; we will confirm the exact timing when you order.
Key features
- Floor-length 270 mm mirror
- Chunky 40 mm diameter bars
- Side or underside valve entry
- Internal diverter system
- Brass finish
Dimensions & heat output
- Height
- 1800 mm
- Width
- 590 mm
- Depth
- 96 mm
- Pipe centres
- 540 mm
- Heat output (ΔT50)
- 837 W
- Heat output (ΔT50)
- 2854 BTU/h
- Weight
- 27.0 kg
Technical specifications
- Model
- Rolo Mirror
- Orientation
- Vertical
- Heat source
- Central heating
- Max working pressure
- 10.0 bar
- Max temperature
- 95 °C
Delivery & returns
Warranty
8 years
Radiator valves
Valves: Yes – central heating valves are needed
Valve selection depends on the radiator connection and your existing pipework. Please check the connection arrangement before ordering. Please contact us and we will confirm the right Terma valve set for this radiator.
