| EAN 5901804191015 | CB NUMBER T1100 |
| Vendor Article Nr. 1804191015 |
Download Docs:
Deceleration of Performance: DoP Case Slim
Fitting Instructions: Bracket Instructions Case Slim (MA)
Product Card: Case Slim Product Card
Technical Drawing: Case Slim 1810×420

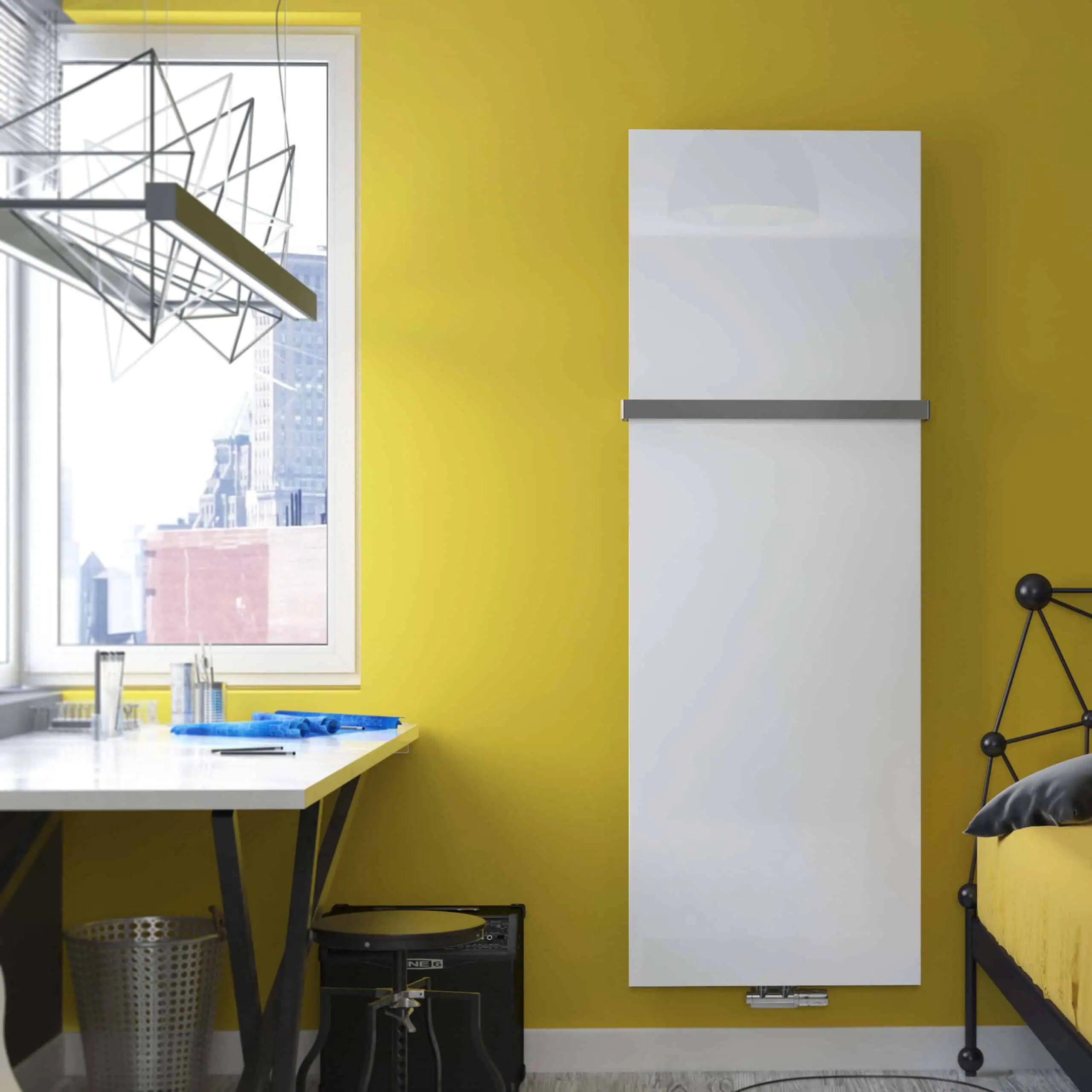

CASE SLIM
Main description
A flat and narrow front panel, large heating plane and high power output are distinctive features of Case Slim. The vertical version of Case Slim features a practical towel rail. Simple modern form of this radiator makes it easier to arrange interior space.
Key points
- Flat front panel
- High power output
- A form which is both minimalist and sophisticated
- Adheres almost flat to the wall
Features and benefits
- Highest quality low carbon steel ensuring product longevity
- Excellent heat output
- Oxsilan® passive rust protection process
- Can be used as a magnetic board
- High quality double layer powder coating
- Great towel hanging capability (towel bar included)
- Up to 8 Year Guarantee
- Increased resistance to chemicals, temperature variations and mechanical damage
- Easy installation (solid wall fixing kit included)
- Made to EN 10305-5
- Easy cleaning and maintenance
Specifications
| Height (mm): | 1810 |
| Width (mm): | 420 |
| Depth (mm): | 48 |
| Colour: | RAL 9016 SOFT / Storm Sky |
| Heat output (W): | 516 |
| Heat output (BTUs): | 1760 |
| Connection type: | SX |
| Connection spacing (mm): | 320 |
| Wall to centre of inlet (mm): | 42-50 |
| Operating pressure (MPa): | 1 |
| Maximum operating temperature (°C): | 95 |
| Material: | Carbon steel |
| Surface finish: | Powder coating |
| Weight (kg): | 37.1 |
Connection diagram
