| Height (mm) | 68.0 |
| Width (mm) | 135.0 |
| Depth (mm) | 95.0 |
| Material | Brass |
| Finish | Chrome |
| Unboxed Weight | 0.660 kg |
| Warranty | 6 year manufacturer’s |
| Style | Angled twin thermostatic radiator valve |
| Compression Inlet(s) | 15mm |
| Outlet(s) | Coupler nut onto threaded coupler arm |
| Radiator Coupler | ½″ BSPT male thread |
| Orientation | Angled |
| Comprises Of | One wheel head & lockshield on one body |
| Pipe Centres (mm) | 50 |
REALM-TA-C

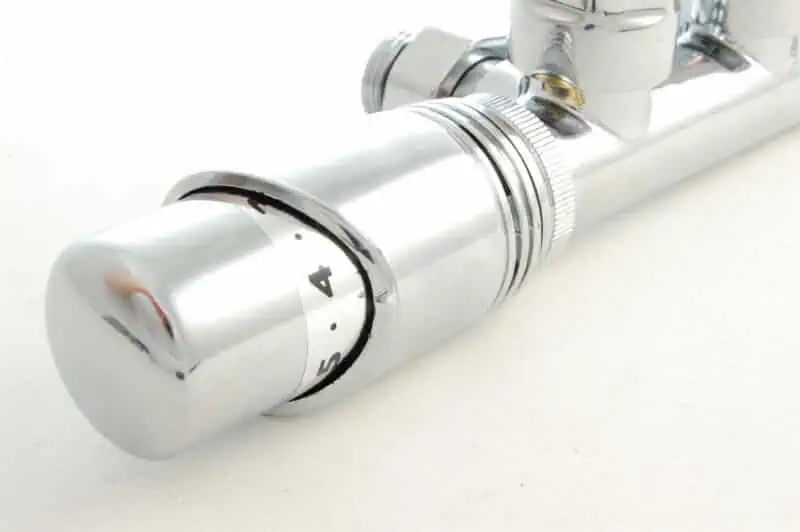

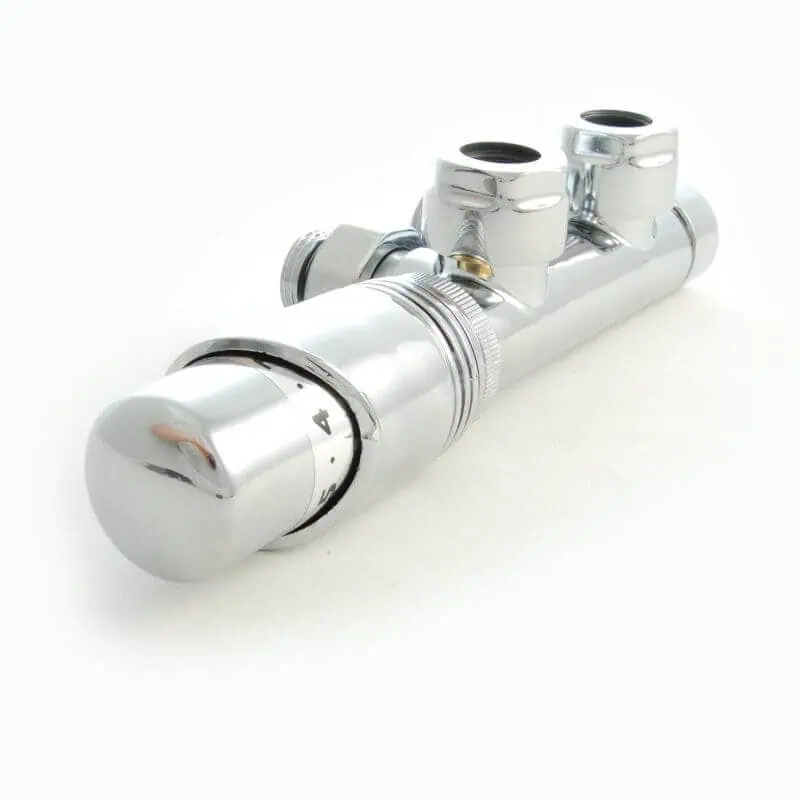

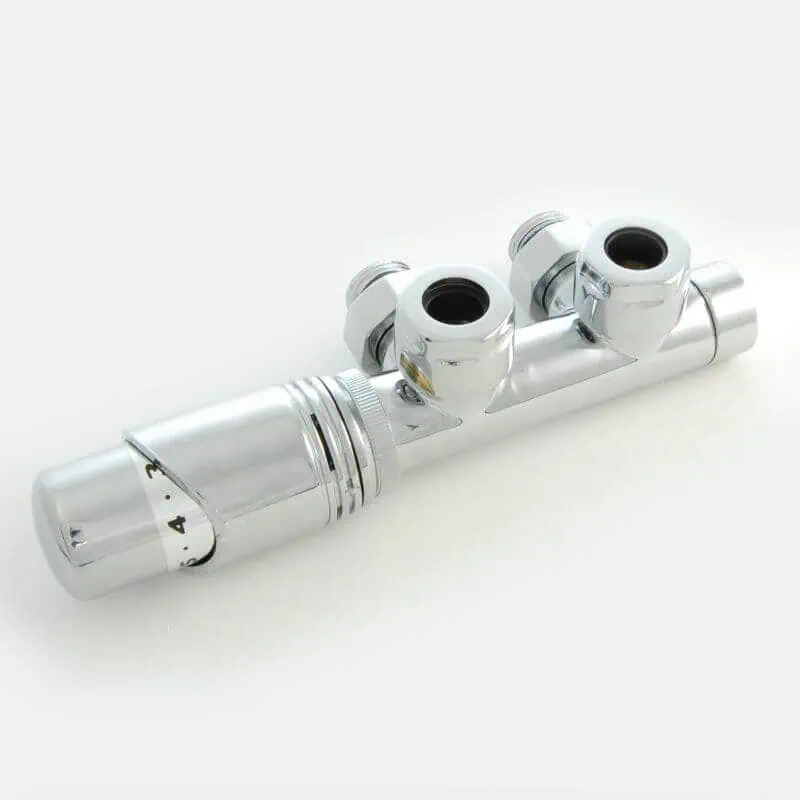

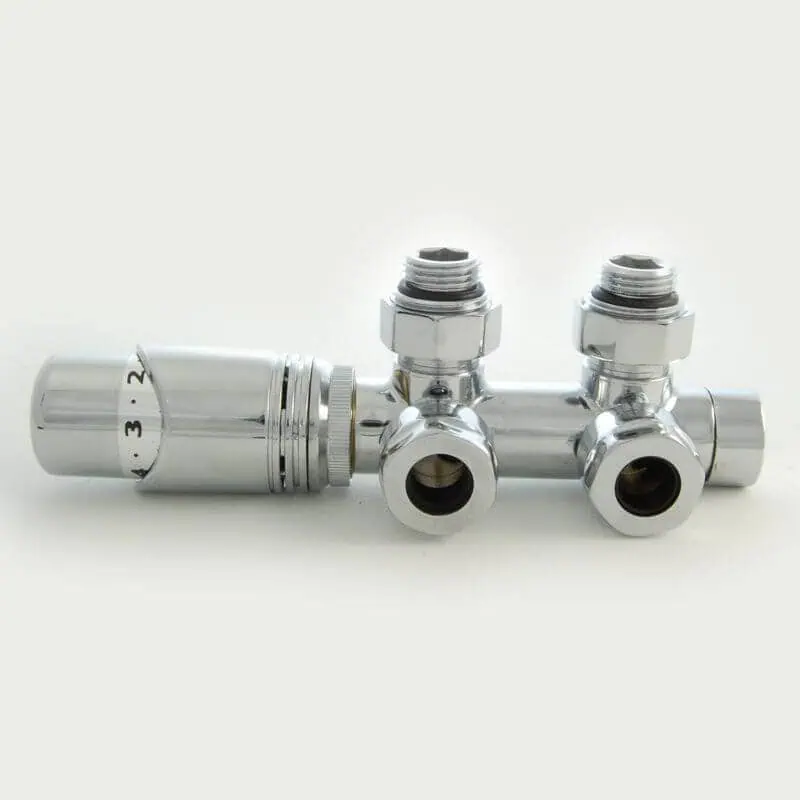

Combined lock-shield and TRV wheel-head on one body with fixed inlet and outlet centres.
We recommend all TRV’s are installed on the flow, rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve, this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi-directional TRVs from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
