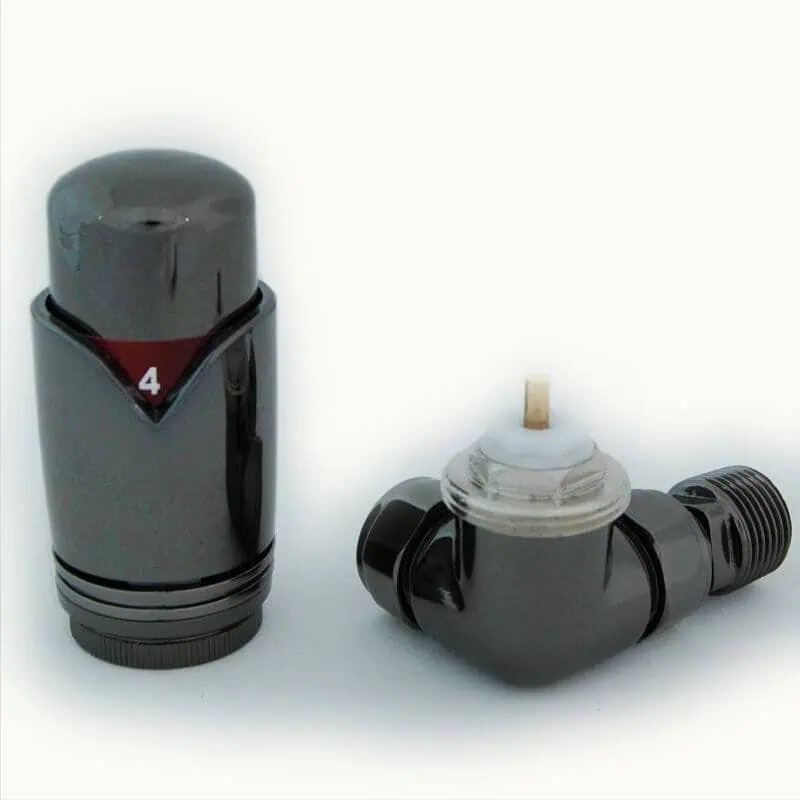

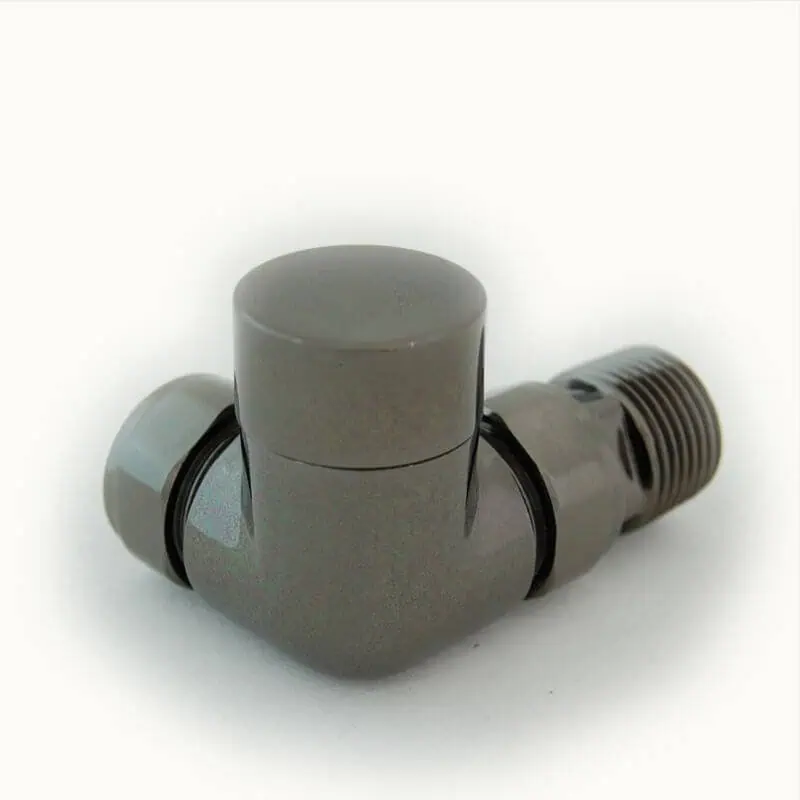

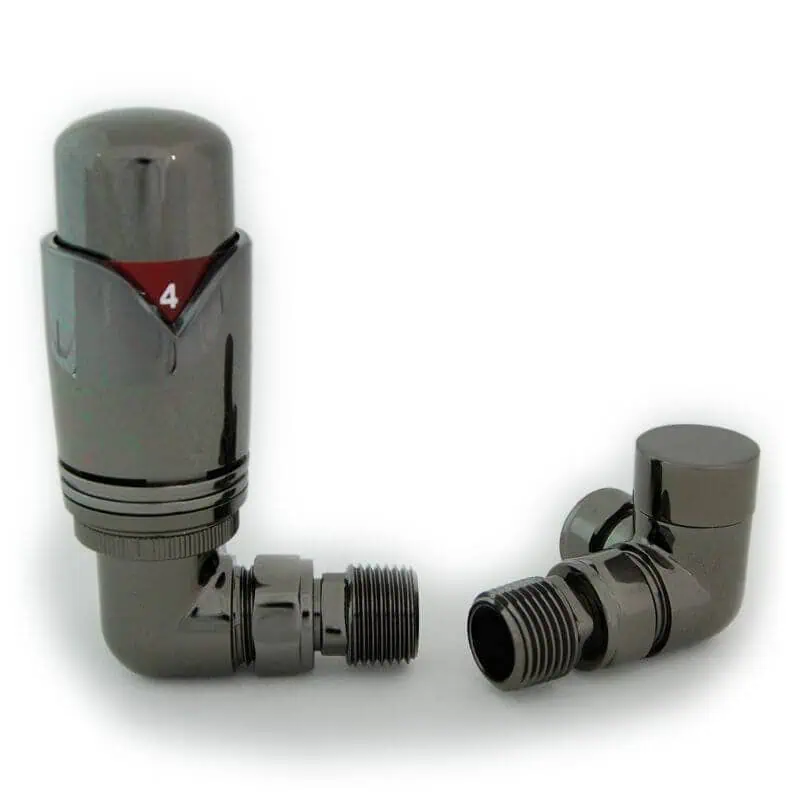

Realm Corner TRV Black Nickel Wheel-head & Lock-shield
£47.00 £65.00
FREE Delivery to Mainland UK If your item is in stock and you order before 3pm your order will be Next Working Day delivery other areas and countries out of this zone please enquire.
Choose from a list of colours and sizes in the drop downs below all information is displayed underneath drop downs BTUs, Pipe Centres and Sizes etc any questions please contact us via Phone or Live Chat

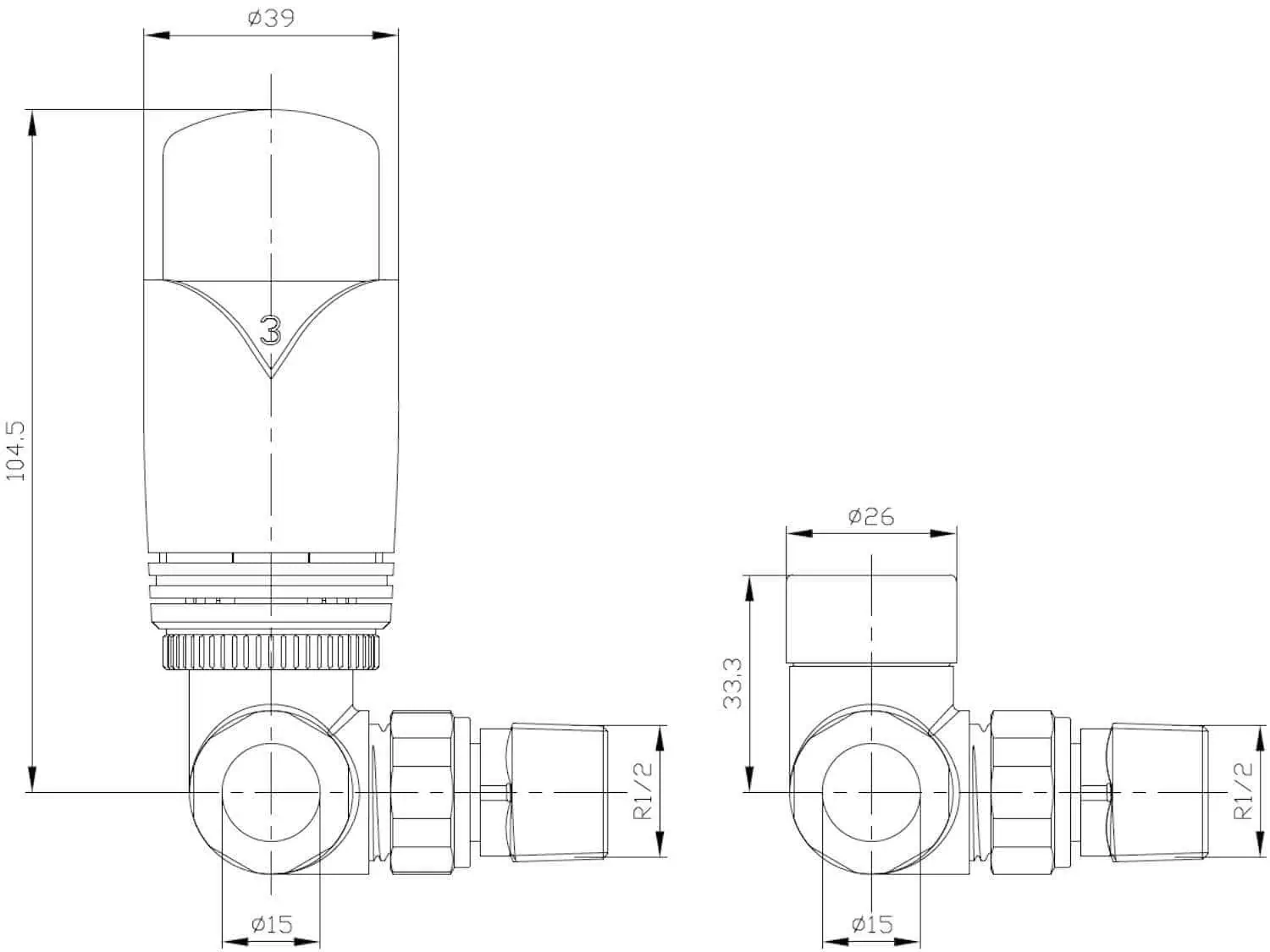

| Height (mm) | 116.0 |
| Width (mm) | 76.0 |
| Depth (mm) | 50.0 |
| Material | Brass |
| Finish | Black Nickel |
| Boxed Weight | 0.630 kg |
| Unboxed Weight | 0.580 kg |
| Warranty | 6 year manufacturer’s |
| Style | Corner thermostatic radiator valve pair |
| Compression Inlet(s) | 15mm |
| Outlet(s) | 15mm compression |
| Radiator Coupler | Variable pitch ½″ BSPT male thread |
| Orientation | Corner |
| Comprises Of | One wheel head and one lockshield |
| Includes | Decorator’s cap |
SKU:Â REALM-2-CR-BL
Made to a high quality, the wheel-head and lock-shield radiator valves are constructed from brass and have a heavy, smooth polished finish and features variable pitch adjustable couplers.
We recommend all TRV’s are installed on the flow, rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve, this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi-directional TRV’s from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
- What valves do i need?
- A simple guide to choosing correct valves for your radiator
- If the pipe work is coming out of the floor and the radiator has side connections you will need a set of Angled Valves.
- If the pipe work is coming out of the floor and the radiator has underneath connections you will need a set of Straight Valves.
- If the pipe work is coming out of the wall and the radiator has side connections you will either need a set of Angled Valves or Corner Valves
- If the pipe work is coming out of the wall and the radiator has underneath connections you will either need a set of Angled Valves or Corner Valves
- View our full range of valves
- If you have any questions about valves or your radiator you can speak to us by using the Live Chat blue icon or call us on 0800 009 6145 9am-8pm 7 days a week
