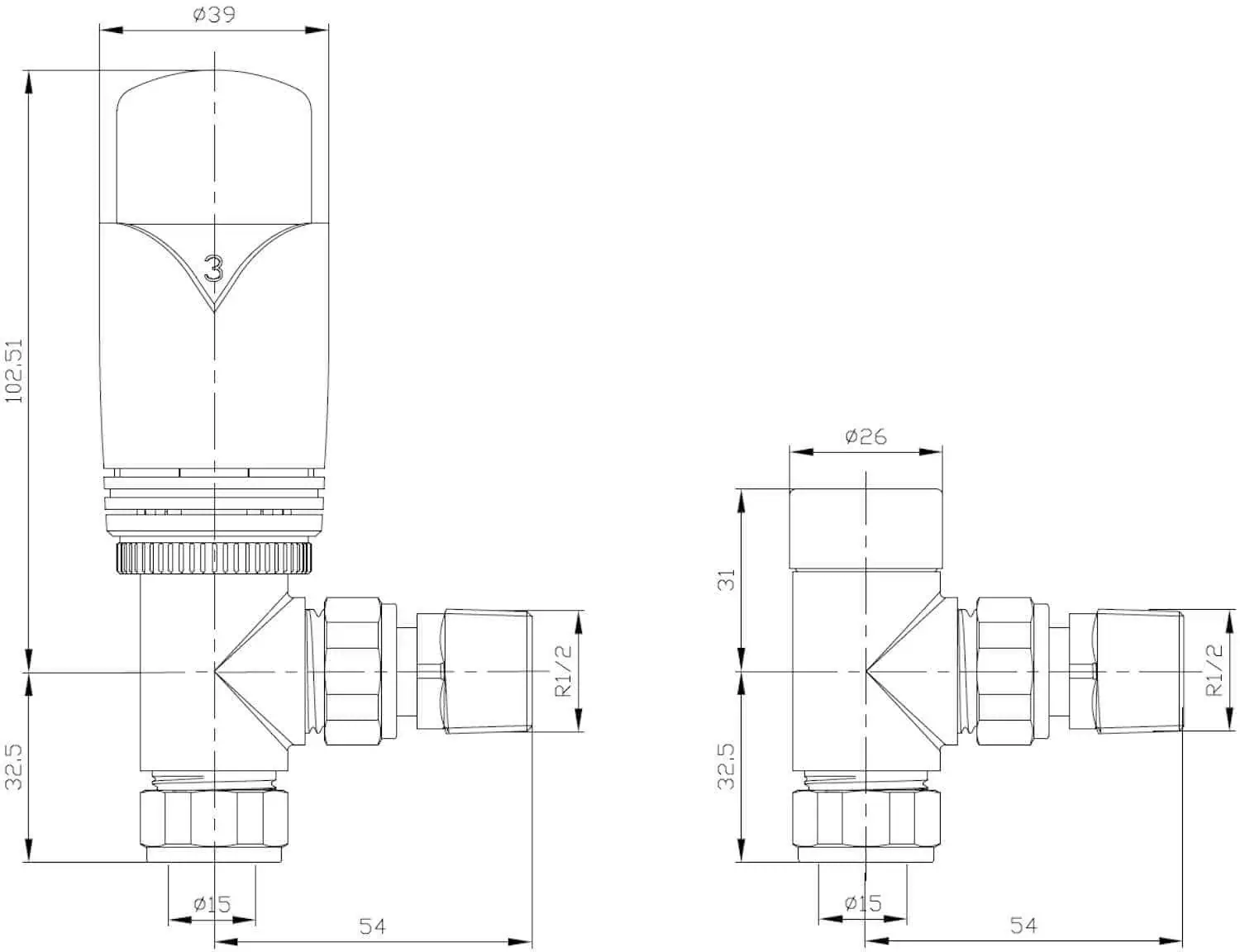

Height (mm) | 135.0 |
Width (mm) | 76.0 |
Depth (mm) | 39.0 |
Material | Brass |
Finish | Chrome |
Boxed Weight | 0.620 kg |
Unboxed Weight | 0.570 kg |
Warranty | 6 year manufacturer’s |
Style | Angled thermostatic radiator valve pair |
Compression Inlet(s) | 15mm |
Outlet(s) | 15mm compression |
Radiator Coupler | Variable pitch ½″ BSPT male thread |
Orientation | Angled |
Comprises Of | One wheel head and one lockshield |
Includes | Decorator’s cap |
REALM-2-AG-C

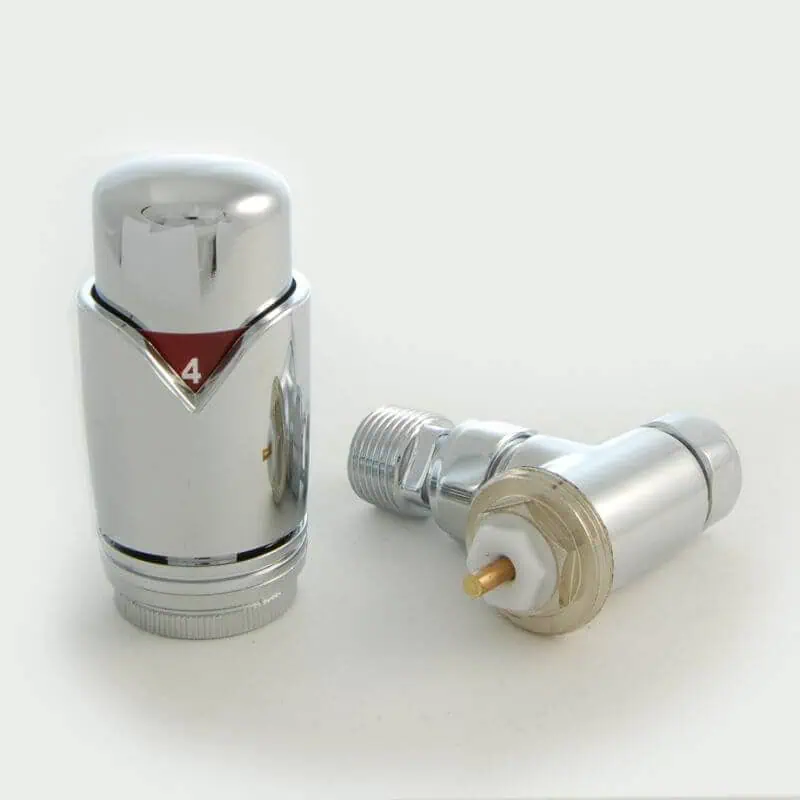

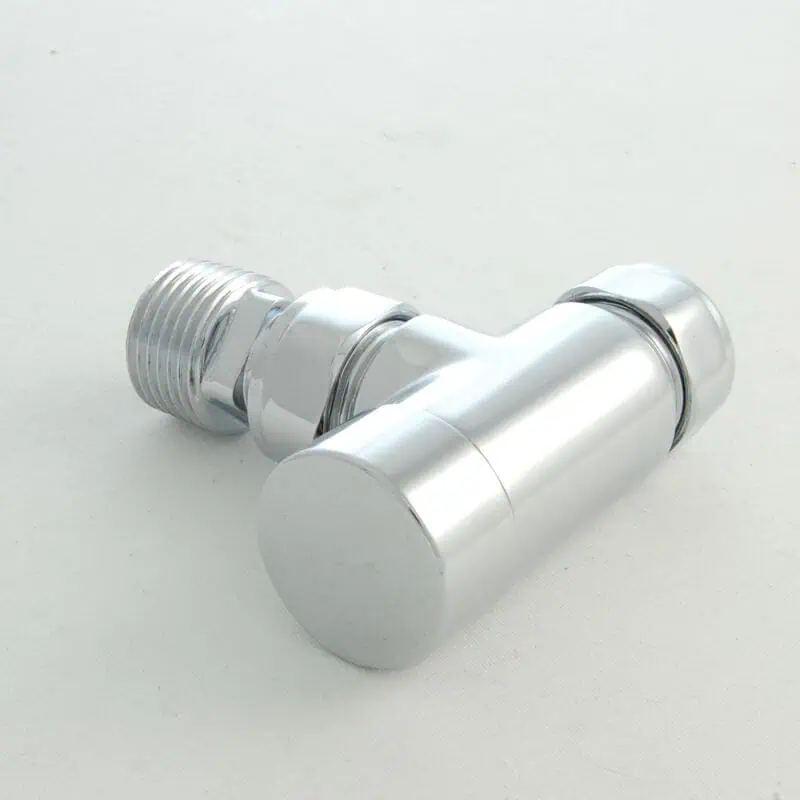

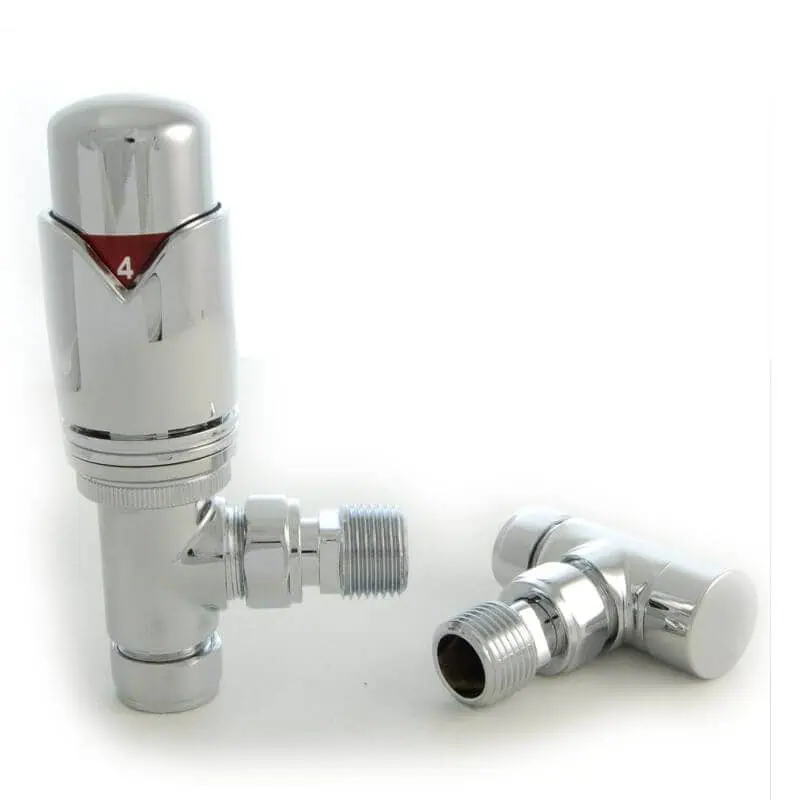

Made to a high quality, the wheel-head and lock-shield radiator valves are constructed from brass and have a heavy, smooth polished finish and features variable pitch adjustable couplers.
We recommend all TRV’s are installed on the flow, rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve, this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi-directional TRV’s from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
