| Height (mm) | 135.0 |
| Width (mm) | 76.0 |
| Depth (mm) | 39.0 |
| Material | Brass |
| Finish | Black Nickel |
| Boxed Weight | 0.620 kg |
| Unboxed Weight | 0.570 kg |
| Warranty | 6 year manufacturer’s |
| Style | Angled thermostatic radiator valve pair |
| Compression Inlet(s) | 15mm |
| Outlet(s) | 15mm compression |
| Radiator Coupler | Variable pitch ½″ BSPT male thread |
| Orientation | Angled |

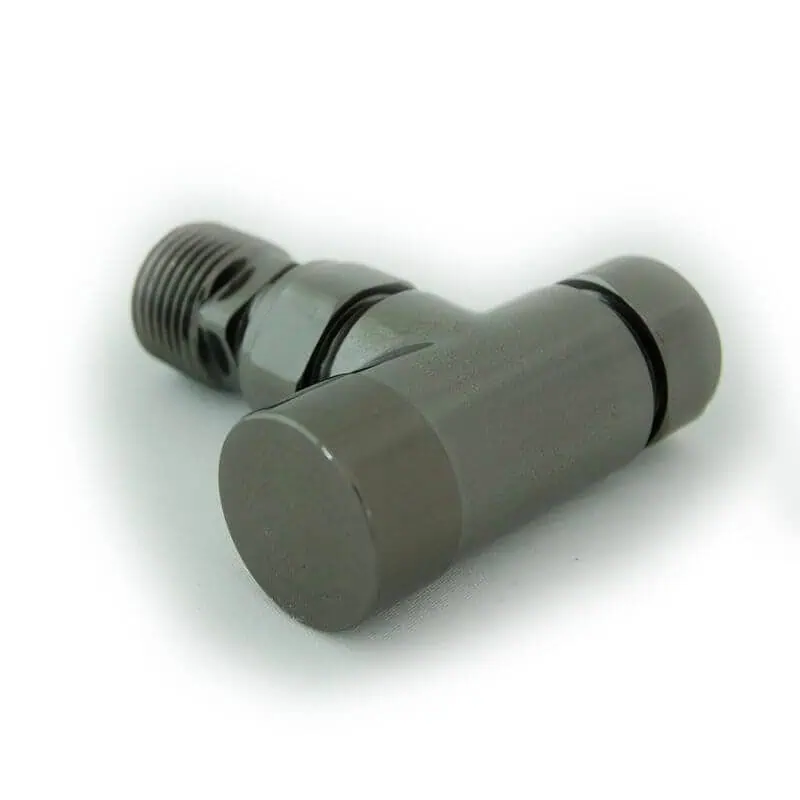

| Comprises Of | One wheel head and one lockshield |
| Includes | Decorator’s cap |
SKU:Â REALM-2-AG-BL
Made to a high quality, the wheel-head and lock-shield radiator valves are constructed from brass and have a heavy, smooth polished finish and features variable pitch adjustable couplers.
We recommend all TRV’s are installed on the flow, rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve, this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi-directional TRV’s from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
