| Height (mm) | 119.0 |
| Width (mm) | 71.0 |
| Depth (mm) | 51.0 |
| Material | Brass and plastic |
| Finish | Chrome |
| Boxed Weight | 0.550 kg |
| Unboxed Weight | 0.510 kg |
| Warranty | 2 years manufacturer’s |

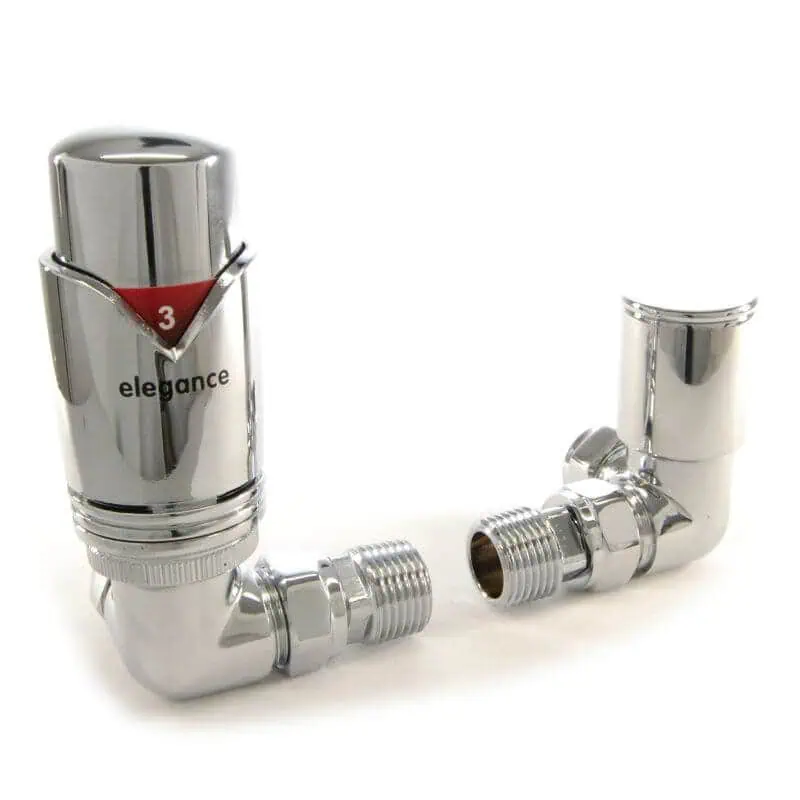

| Style | Modern corner thermostatic radiator valve pair |
| Compression Inlet(s) | 15mm |
| Radiator Coupler | ½″ BSPT male thread |
| Orientation | Corner |
| Comprises Of | One wheel head and one mini wheel head |
| Feature(s) | Frost protection |
| Includes | Decorator’s cap |
ELEG-CR-C
We recommend all TRV’s are installed on the flow, rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve, this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi-directional TRV’s from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
