Height (mm) | 146.0 |
Width (mm) | 64.0 |
Depth (mm) | 96.0 |
Material | Brass |
Finish | Polished Brass |
Boxed Weight | 1.263 kg |
Unboxed Weight | 1.106 kg |
Warranty | 2 years manufacturer’s |

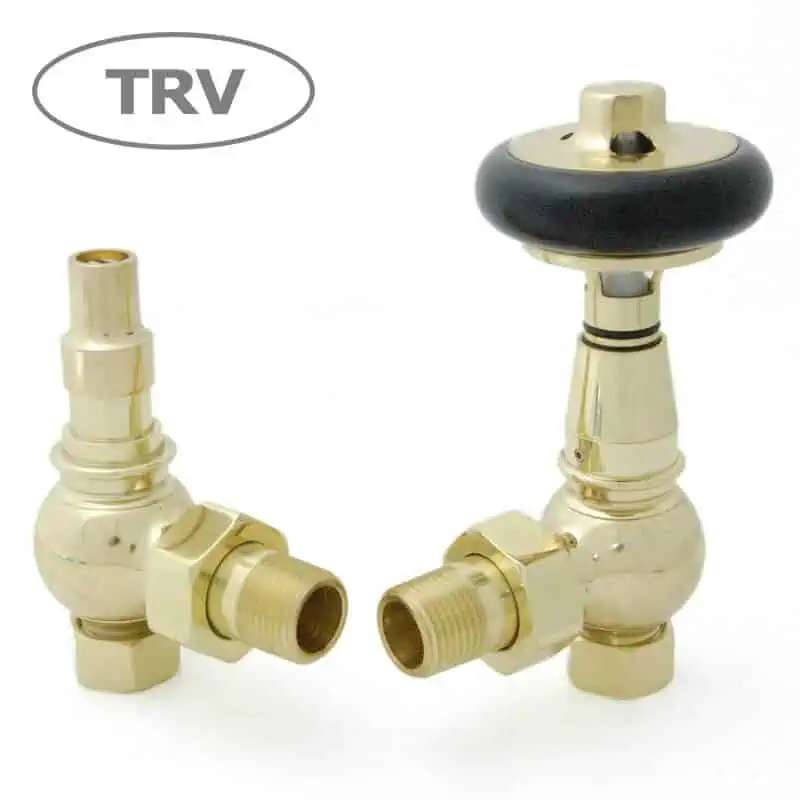

Style | Traditional thermostatic radiator valve pair |
Compression Inlet(s) | 15mm |
Radiator Coupler | ½″ BSPT male thread |
Orientation | Angled |
Wheel-head Handle | Wood (Black Finish) |

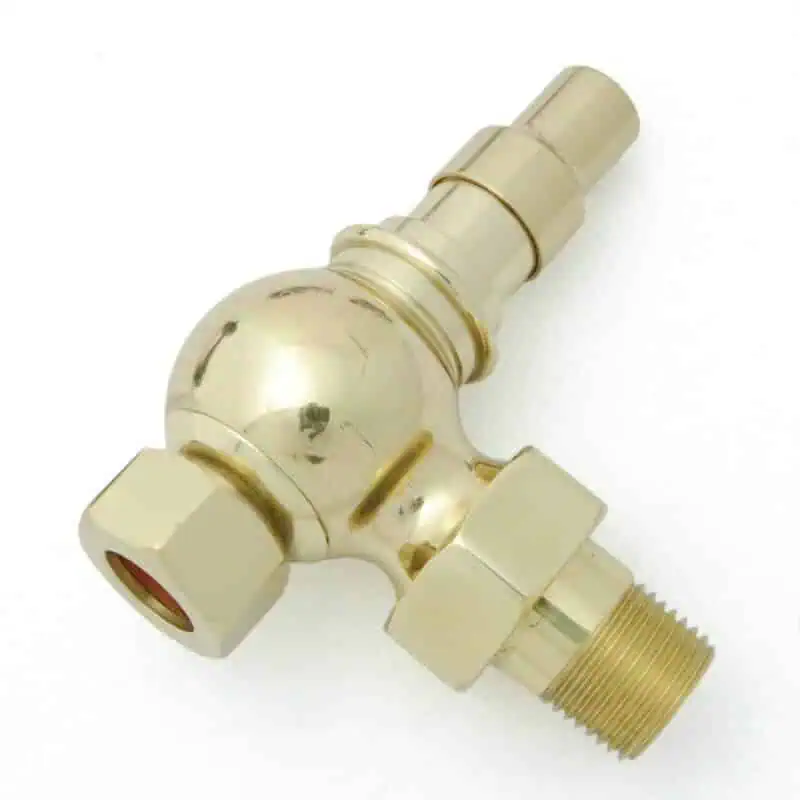

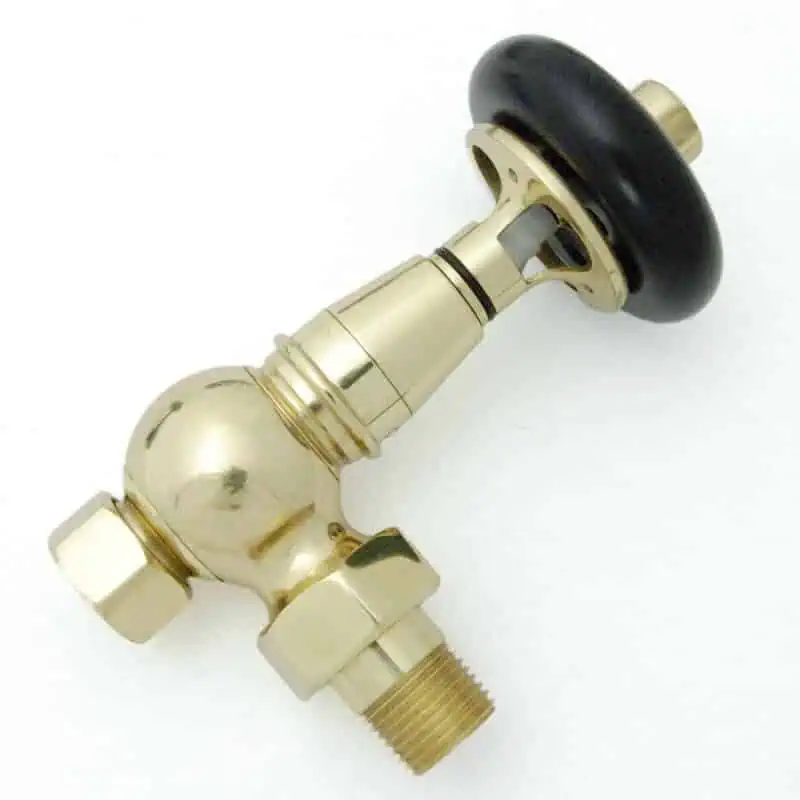

Comprises Of | One wheel head and one lockshield |
Feature(s) | Positive Shut Off |
SKU:Â AMB-B
We recommend all TRV’s are installed on the flow, rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve, this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi-directional TRV’s from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
