| Height (mm) | 155.0 |
| Width (mm) | 80.0 |
| Depth (mm) | 55.0 |
| Material | Brass |
| Finish | Pewter |
| Boxed Weight | 0.750 kg |
| Unboxed Weight | 0.650 kg |
| Warranty | 6 year manufacturer’s |
| Style | Thermostatic radiator valve and lock-shield |
| Compression Inlet(s) | 15mm |
| Threaded Inlet(s) | ¾″ BSPP female |
| Radiator Coupler | ½″ BSPT male thread |
| Orientation | Angled |
| Comprises Of | One wheel head and one lockshield |
| Feature(s) | Frost Protection |
| Standards | CE EN215:2004+A1:2006 EN1489:2000 |
| Version | Thermostatic wheelhead |
| Please Note | Decorator’s cap available separately. Decorator’s caps are used to fully isolate TRV valves, whilst a radiator is removed for decorating. |
| Option(s) | Optional extras available to convert to 22mm compression or ½” BSPP female thread inlets. Also option to covert radiator coupler to ¾′ BSPT male thread. |
SKU: ABB-TRV-PEW

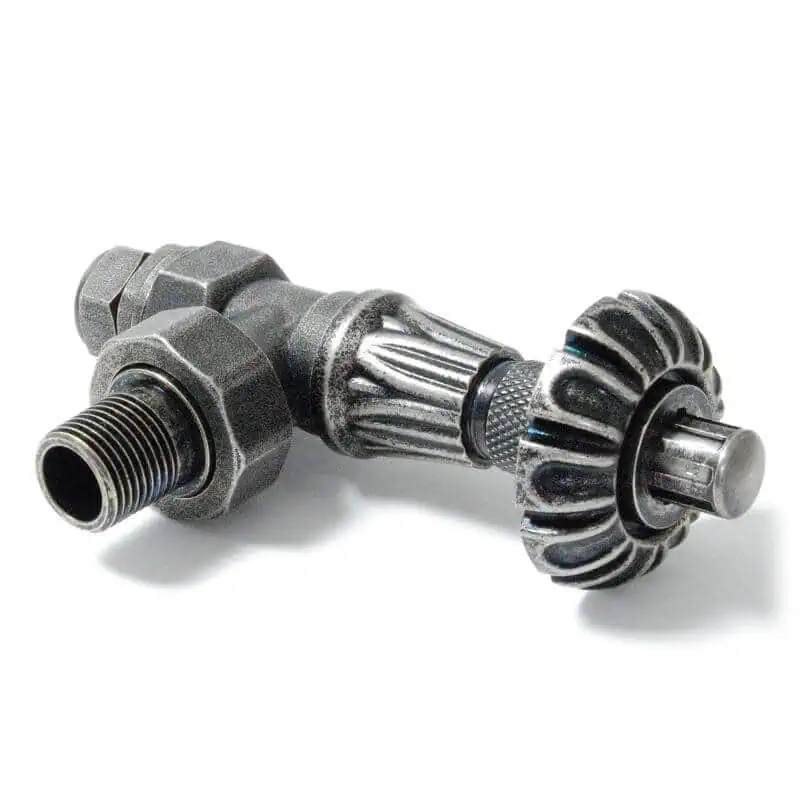

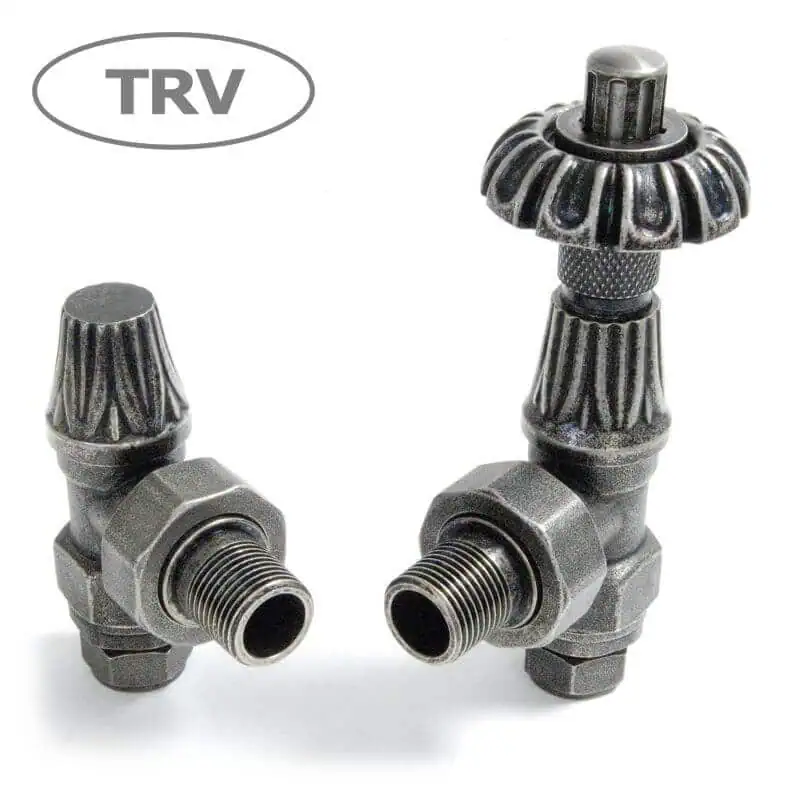

The Abbey range of radiator valves are designed to be the most versatile traditional style valves you can find. Each type is capable of being installed on existing heating systems no matter how old or large.
Every one of these valves is hand finished, so each valve is unique, with some colour variation possible. The thermostatic valve is simple to use and features a temperature increment gauge on the wheel-head shaft.
We recommend all TRV’s are installed on the flow, rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve, this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi-directional TRV’s from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
Note: Please be aware that our Pewter products are hand finished and as such can vary in appearance across their surface. Each product is unique with a mottled texture that creates an aged characteristic. This weathered or distressed look is very popular where customers are keen to avoid a shiny new appearance and require a more authentic look.
