DQ Modus Electric Horizontal Column Radiator

Product Overview

The DQ Modus Electric Horizontal is the electric-only version of DQ's classic Modus column radiator, available as a 2, 3 or 4 column horizontal radiator, 600 mm high. It is supplied with a Wi-Fi heating element and controller for independent room heating.

Key Features

Electric-only column radiator in mild steel, pre-filled and sealed
Wi-Fi heating element with controller included, operated through the SUPLA app
2, 3 and 4 column configurations in four widths (692 to 1290 mm)
Core finishes: White RAL 9016, Anthracite RAL 7016 Texture, Ultra Matt Black and Bare Metal Lacquer
Element ratings from 600 W to 2000 W, depending on size and number of columns

Available Sizes & Finishes

12 sizes are listed in the following core finishes: White (RAL 9016), Anthracite (RAL 7016 Texture), Ultra Matt Black, Bare Metal Lacquer.

Additional RAL colours and specialist finishes may be available to order.

Technical Specifications

Manufacturer: DQ Heating
Material: Mild Steel
Wall to front face: 87 / 125 / 161 (2 / 3 / 4 column, per price list) mm
Voltage: NOT AVAILABLE IN SOURCE
IP rating: NOT AVAILABLE IN SOURCE

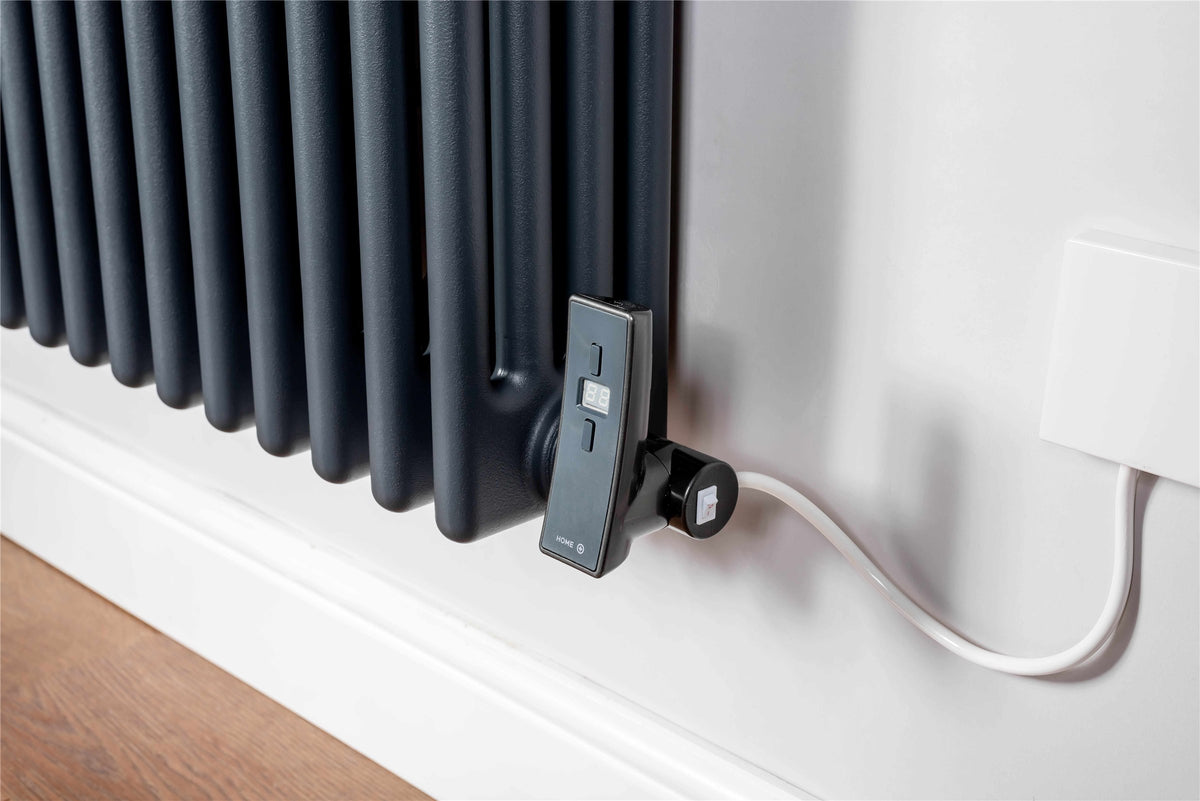

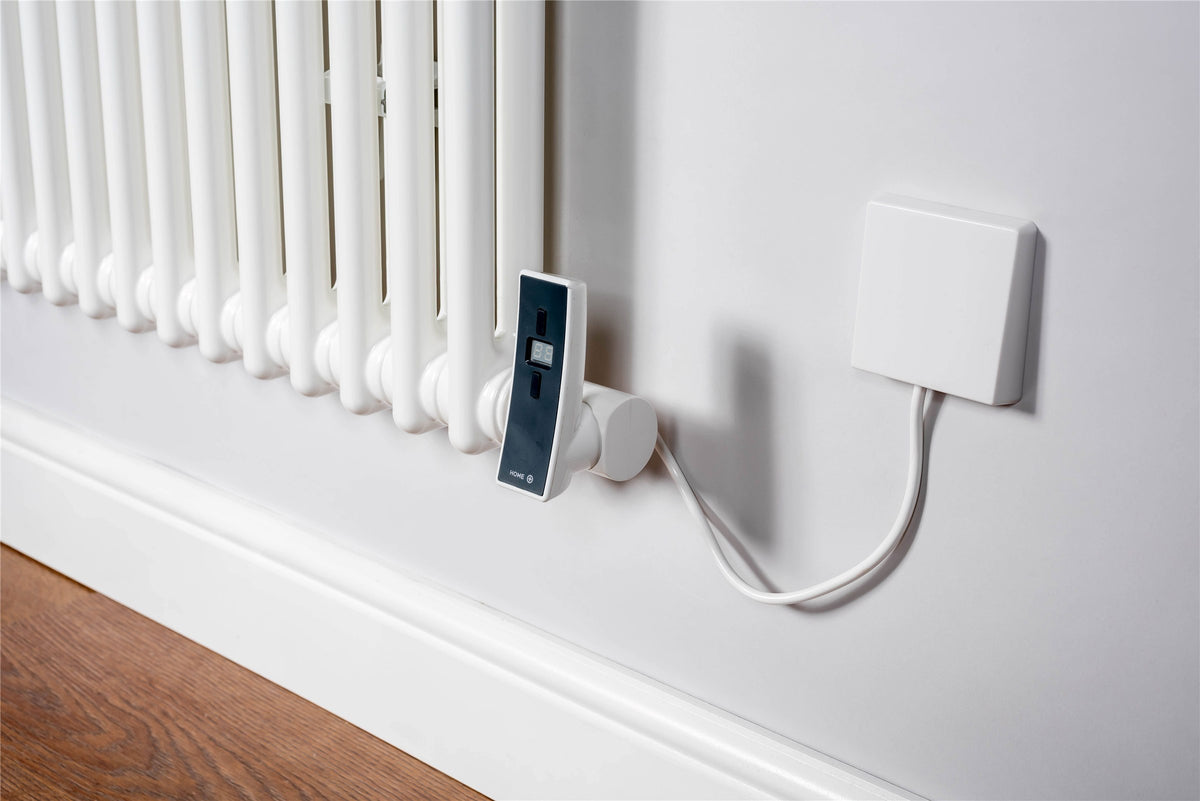

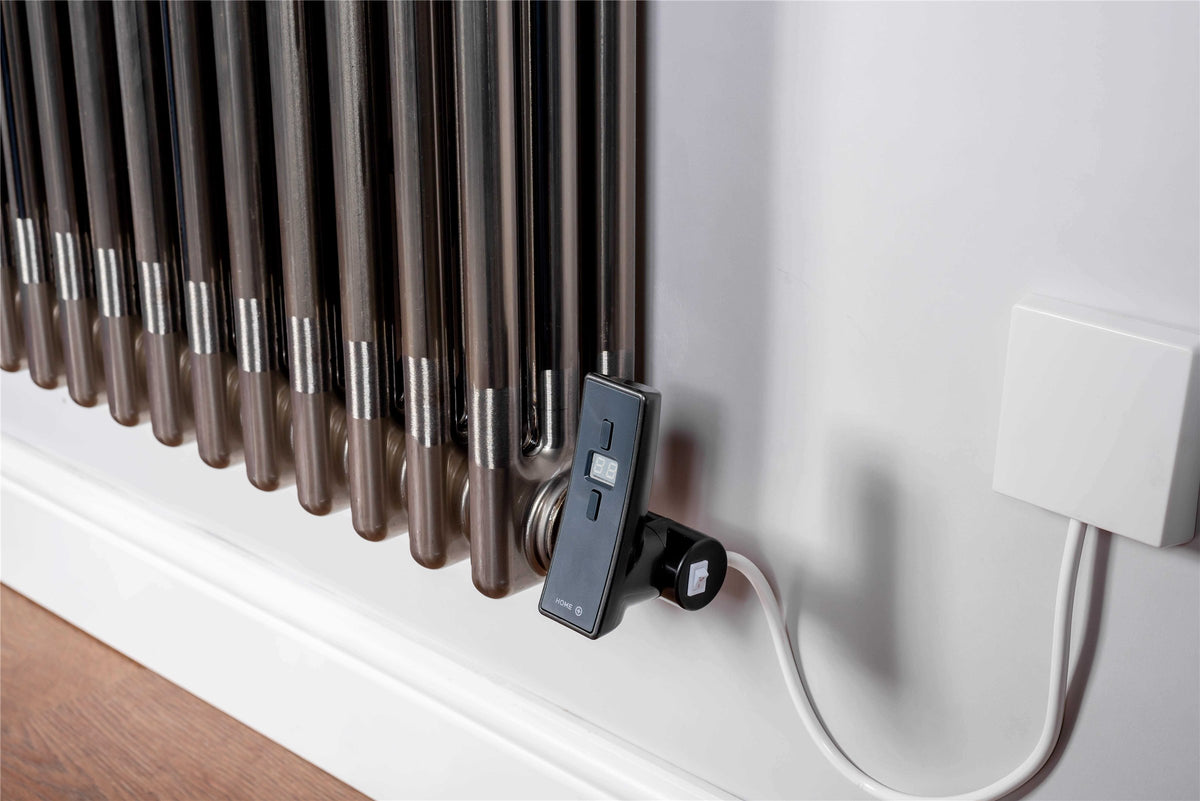

Control: Wi-Fi heating element and controller included (SUPLA app, per DQ brochure)
Construction: 2, 3 or 4 column; 13 to 26 sections
Guarantee: 8 years (2 years on the heating element)

Size (H x W mm)	Configuration	Element power (W)	Weight (kg)
600 x 692	2 Column	600	21
600 x 692	3 Column	900	28
600 x 692	4 Column	1200	42
600 x 876	2 Column	900	27
600 x 876	3 Column	1200	38
600 x 876	4 Column	1500	55
600 x 1060	2 Column	1200	33
600 x 1060	3 Column	1500	48
600 x 1060	4 Column	2000	66
600 x 1290	2 Column	1500	39
600 x 1290	3 Column	2000	57
600 x 1290	4 Column	2000	78

Electrical ratings are the nominal power of the heating element and are not comparable with central heating (ΔT50) outputs.

Heating System

Electric only. The radiator is heated by the supplied Wi-Fi heating element and controller. Electrical ratings are the element wattage, not a central heating (ΔT50) output.

Installation Information

Wall mounted with the supplied wall brackets. Electrical connection and installation of the element must be carried out by a competent person in line with DQ's fixing instructions; a Wi-Fi signal must be present where the heater will be fitted.

Delivery & Warranty

Manufacturer lead times (DQ Heating): stocked sizes in White (RAL 9016), Anthracite (RAL 7016 Texture), Bare Metal Lacquer: next working day; Ultra Matt Black: 7 working days. These are DQ Heating's own lead times for its stock and production, not a delivery promise from POSHRADS; please contact us to confirm availability and delivery before ordering.

Guarantee: 8 years (2 years on the heating element).
