Towelrads Pisa Chrome Straight Designer Towel Rail
The Pisa 25mm bar range is our market leading ladder rail. The diameter of the bar is directly linked to heat output so the larger the bar, the higher the holding capacity of the towel rail, giving greater heat output. Available in both straight and curved designs, this radiator compliments any bathroom.
Features & Benefits
- High heat output achieved by using 25mm bars.
- Can be used on central heating or Dual Fuel systems.
- Wide range of sizes to cater for all spaces.
- An even higher heat output can be achieved via painted or powder coated models.
- Horizontal models fit neatly under windows.
Details & Sizes
- Steel radiator finished in chrome.
- Supplied with all fixtures and fittings.
- All components use British standard fittings.
- Tested to BS EN 442 standards.
- Suitable for any central heating systems.
- Safety tested at 13 bar pressure. Normal household pressure is well under 5 bar.
- Maximum working temperature of 110°C.
- 1-2 Day Delivery.
Pisa Chrome Straight
Model | Code | Height (mm) | Length (mm) | Depth (mm) | Pipe Centres (mm) | Output (Watts) | Output (BTUs) | |
---|---|---|---|---|---|---|---|---|
Straight | 140001 | 600 | 400 | 65-88 | 355 | 158 | 539 | |
Straight | 140002 | 600 | 450 | 65-88 | 405 | 175 | 597 | |
Straight | 140003 | 600 | 500 | 65-88 | 455 | 193 | 659 | |
Straight | 140004 | 600 | 600 | 65-88 | 555 | 228 | 778 | |
Straight | 140005 | 800 | 300 | 65-88 | 255 | 161 | 549 | |
Straight | 140006 | 800 | 400 | 65-88 | 355 | 207 | 706 | |
Straight | 140007 | 800 | 450 | 65-88 | 405 | 230 | 785 | |

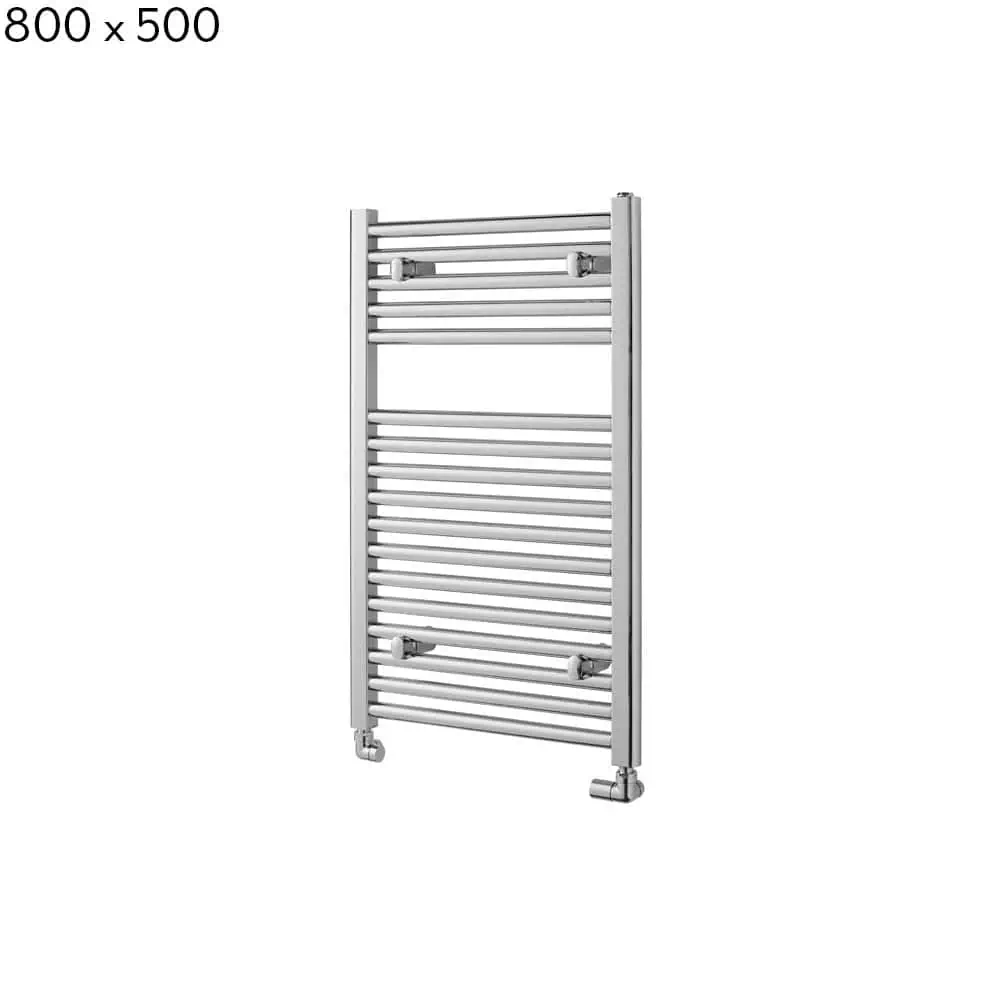

Straight | 140008 | 800 | 500 | 65-88 | 455 | 253 | 863 | |
Straight | 140009 | 800 | 600 | 65-88 | 555 | 298 | 1017 | |
Straight | 140010 | 800 | 750 | 65-880 | 705 | 367 | 1252 | |
Straight | 140011 | 1000 | 400 | 65-88 | 355 | 257 | 877 | |

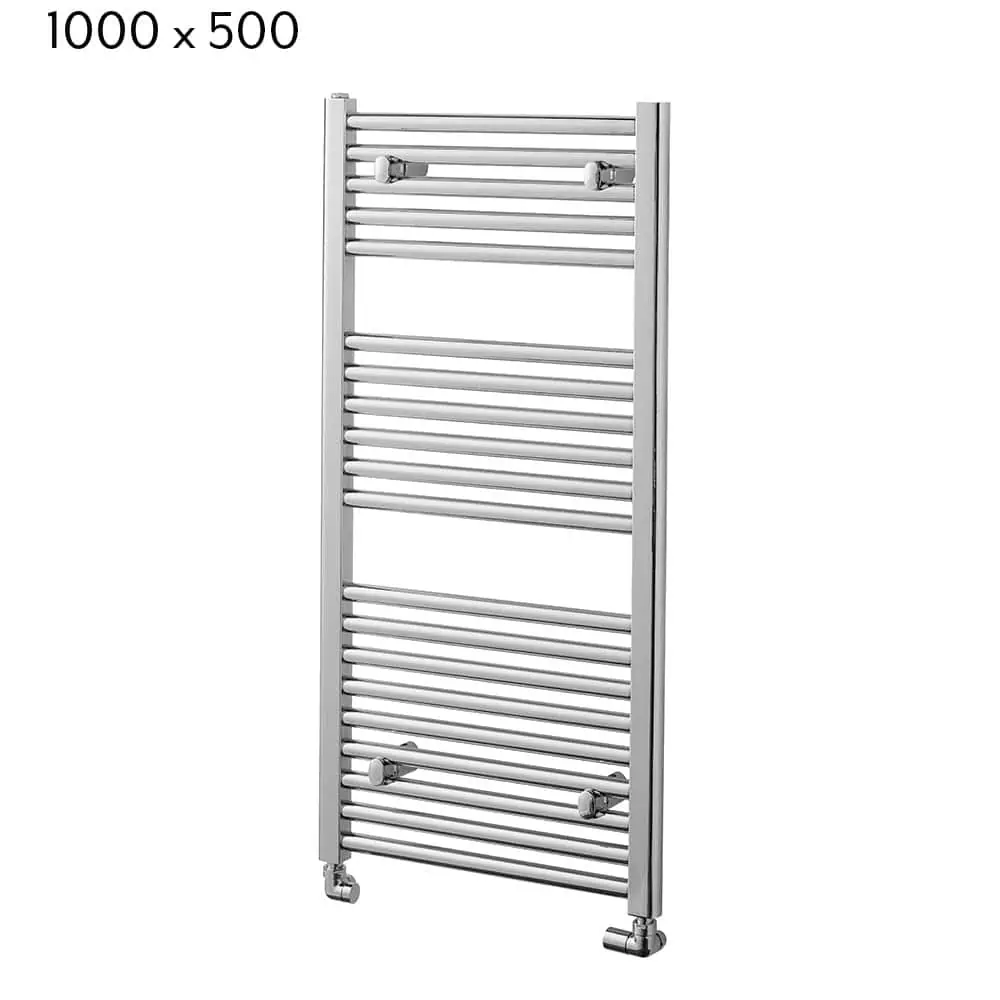

Straight | 140012 | 1000 | 500 | 65-88 | 455 | 313 | 1068 | |
Straight | 140013 | 1000 | 600 | 65-88 | 555 | 370 | 1262 | |
Straight | 140014 | 1200 | 300 | 65-88 | 255 | 240 | 819 | |
Straight | 140015 | 1200 | 400 | 65-88 | 355 | 308 | 1051 | |
Straight | 140016 | 1200 | 450 | 65-88 | 405 | 342 | 1167 | |

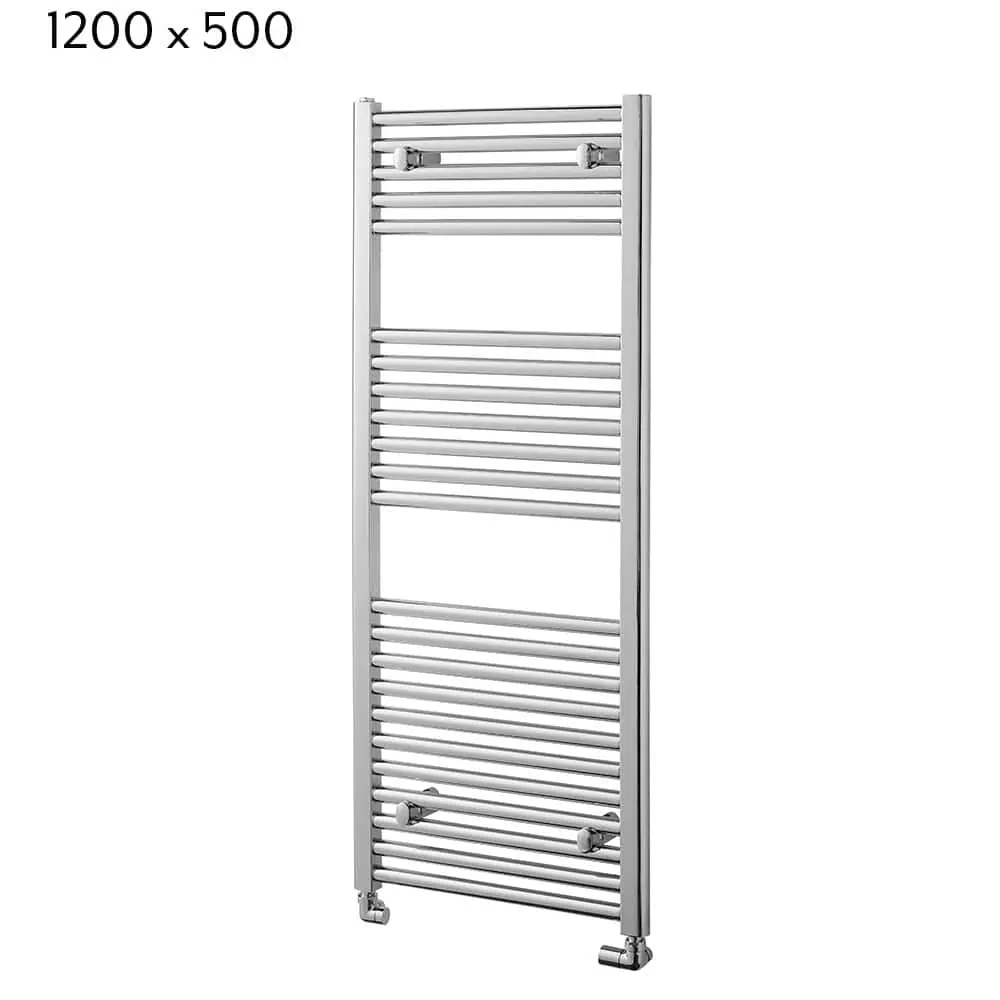

Straight | 140017 | 1200 | 500 | 65-88 | 455 | 375 | 1280 | |
Straight | 140018 | 1200 | 600 | 65-88 | 550 | 442 | 1508 | |
Straight | 140019 | 1200 | 750 | 65-88 | 705 | 543 | 1853 | |
Straight | 140020 | 1400 | 400 | 65-88 | 355 | 361 | 1232 | |
Straight | 140021 | 1400 | 450 | 65-88 | 405 | 400 | 1365 | |

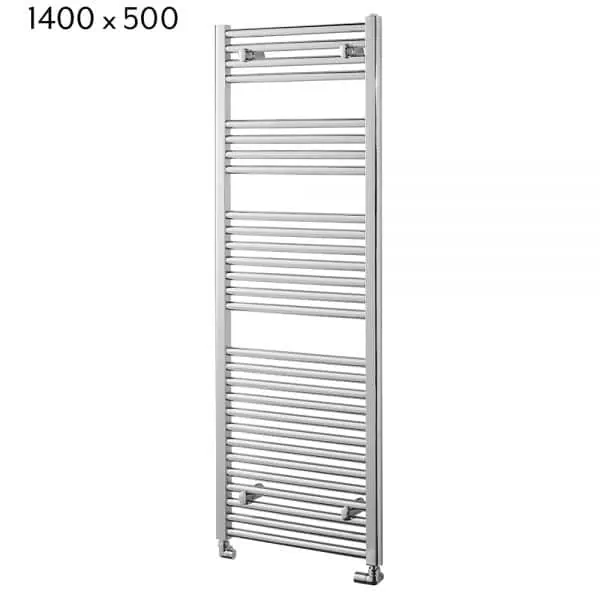

Straight | 140022 | 1400 | 500 | 65-88 | 455 | 439 | 1498 | |
Straight | 140023 | 1400 | 600 | 65-88 | 555 | 517 | 1764 | |
Straight | 140024 | 1400 | 750 | 65-88 | 705 | 635 | 2167 | |
Straight | 140025 | 1600 | 300 | 65-88 | 255 | 326 | 1112 | |
Straight | 140026 | 1600 | 400 | 65-88 | 355 | 415 | 1416 | |
Straight | 140027 | 1600 | 450 | 65-88 | 405 | 460 | 1570 | |

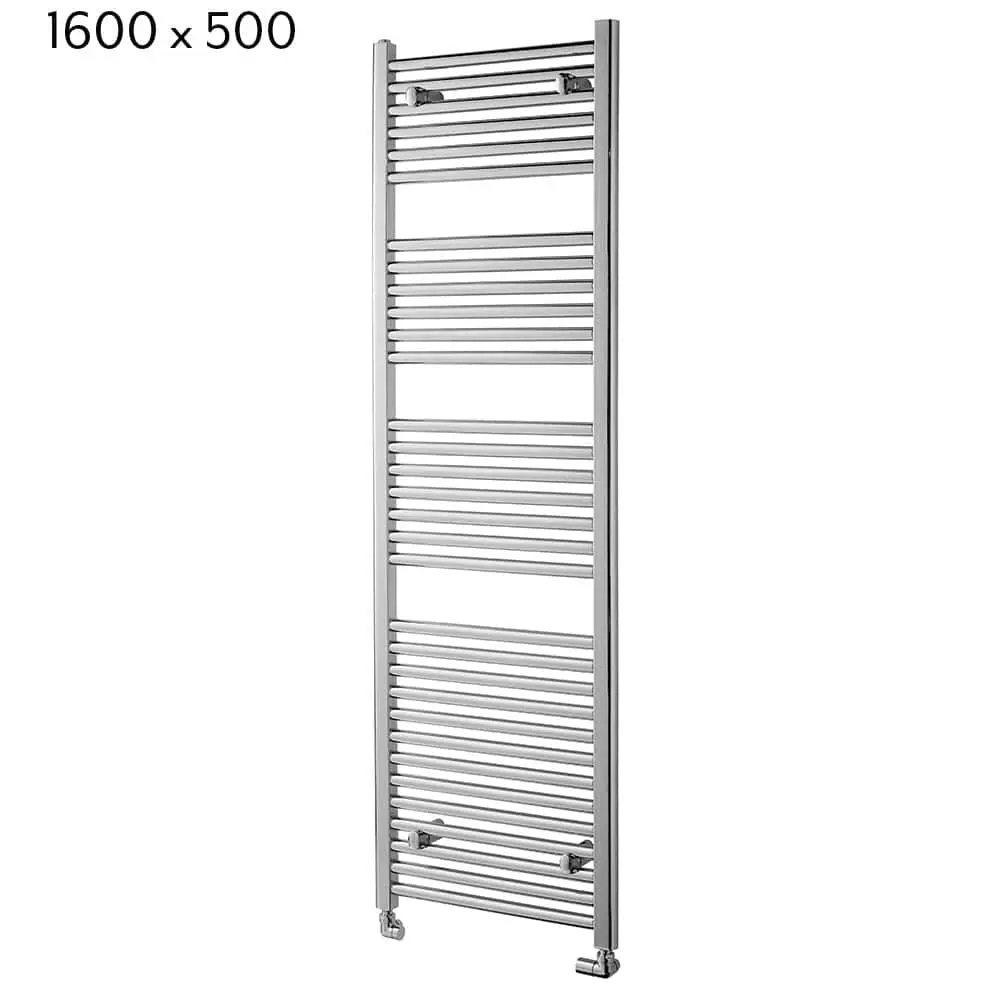

Straight | 140028 | 1600 | 500 | 65-88 | 455 | 505 | 1723 | |
Straight | 140029 | 1600 | 600 | 65-88 | 555 | 594 | 2027 | |
Straight | 140030 | 1800 | 300 | 65-88 | 255 | 371 | 1266 | |
Straight | 140031 | 1800 | 400 | 65-88 | 355 | 472 | 1610 | |
Straight | 140032 | 1800 | 450 | 65-88 | 405 | 522 | 1781 | |

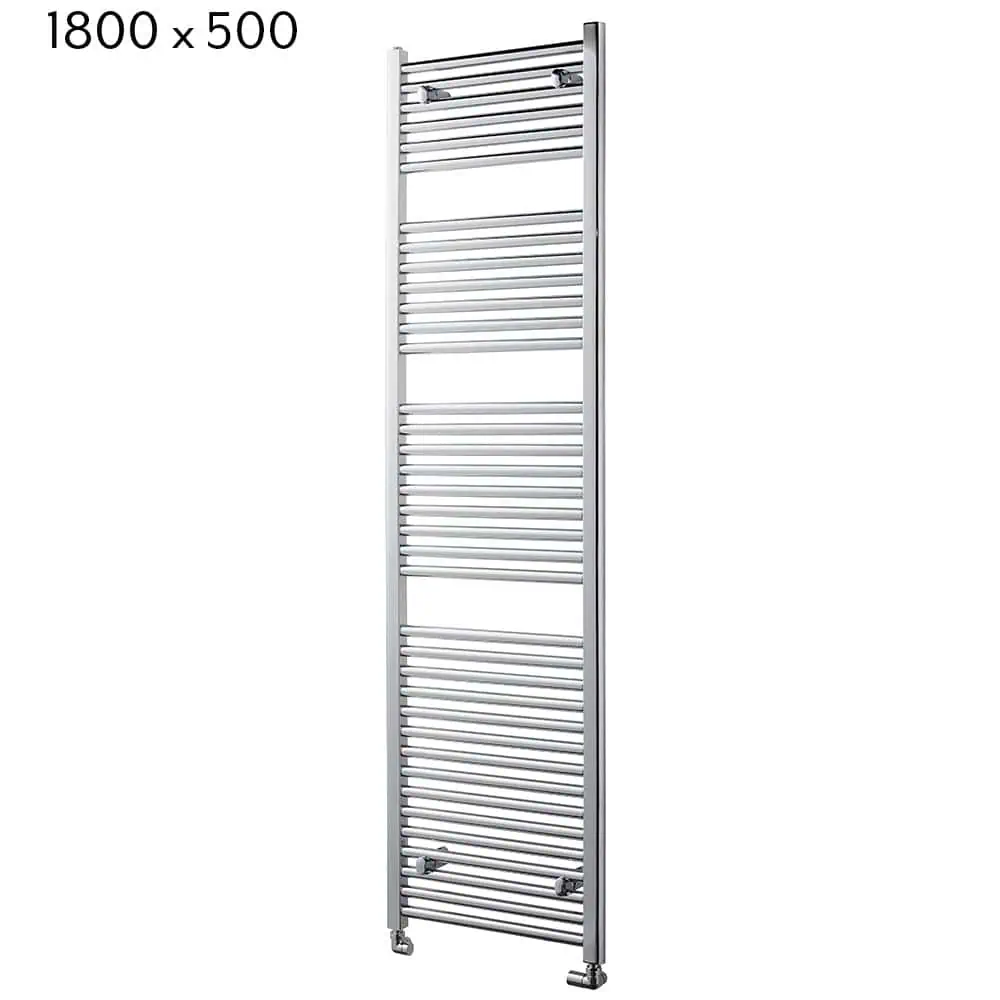

Straight | 140033 | 1800 | 500 | 65-88 | 455 | 572 | 1952 | |
Straight | 140034 | 1800 | 600 | 65-88 | 555 | 673 | 2296 | |
Straight | 140035 | 1800 | 750 | 65-88 | 705 | 824 | 2811 |
